Newmarket Microelectronics Lab

We manufacture some of the most complex electronics in the world and bring deep expertise in microelectronics, providing customers with specialized capabilities in our cleanrooms.



Celestica employee in the microelectronics lab

Advanced Microelectronics Solutions

Increased demand for lower cost, technically advanced and smaller lightweight electronics has changed the electronics assembly landscape. For more than 25 years, Celestica has been a trusted partner to the world’s leading companies in high-reliability markets including aerospace and defense, healthtech, industrial, smart energy and  communications. We manufacture some of the most complex electronics in the world and bring deep expertise in microelectronics  Whether your product requirements have a need for miniaturization, or bare die solutions, our microelectronics capabilities meet world-wide industry standards.



Coresim design analysis

Design Services

Whether it's a complex new product introduction or a redesign, our broad capabilities meet the needs of a wide range of industries and markets. We’re proud to offer:

  • Design capabilities aligned with market standards and emerging technologies
  • Celestica design guide for manufacturing and test ready for your launch
  • Early design-for-manufacture (DFM) and design-for-test (DFT) engagement that will have minimal impact on your design and schedule



Celestica employee in the microelectronics lab

Assembly Services

Leveraging over 25 years of manufacturing experience and a 75-year OEM heritage, we offer state-of-the-art:

  • ISO class 6 cleanroom
  • Flip chip with underfill and precision epoxy die attach
  • Wirebonding (gold and aluminum) / Globtop (auger and jetting)
  • Complex SMT assembly from 01005s to >75mm BGA package
  • PTH, wave solder, wash  and complete backend assembly including conformal coating



The Atlas Detector upgrade for the Large Hadron Collider at CERN

Testing and Inspection

Celestica has a long history of building reliable products for the world’s leading tech companies.  One example, shown right, is the Atlas Detector upgrade for the Large Hadron Collider at CERN. The prototype was assembled in our Microelectronics Lab. These complex sensors have thousands of wirebonds that must survive a radiation environment for many years without failure.

Our testing and inspection services that are designed to test failure limits include:

  • Optical inspection including automated paste and component inspection
  • Post bond die attach verification
  • Manual and automated x-ray inspection
  • Flying probe and in-circuit test
  • Functional test, and custom solutions

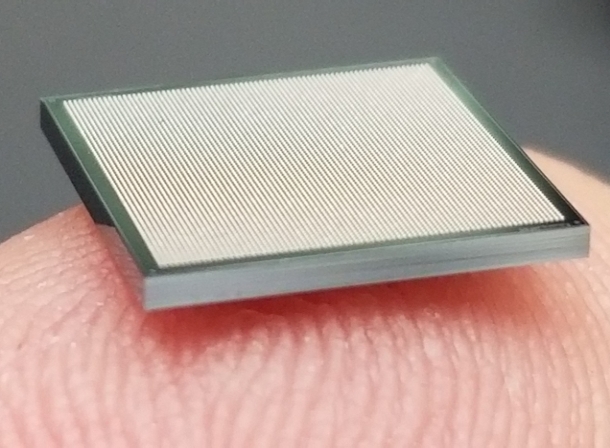

flip chip on a finger tip

Reliability and Qualtiy

Our dedicated laboratory team has extensive experience to ensure the reliability and quality of our work.  We have a long history of test vehicle build and development projects that have been enabled through:

  • Full-service materials lab including; X-ray, Scanning Electron Microscopy (SEM), C-mode Scanning Acoustic Microscopy (CSAM), Fourier Transform Infrared System (FTiR),  X-ray Fluorescence System (XRF), Accelerated Thermal (ATC) Cycling, MultiEnvironment OverStress Testing (MEOST)
  • Mechanical stress testing including vibration and shock test
  • Reliability chamber testing including ATC, humidity and MEOST chambers



Related Resources

Solving your microelectronics manufacturing testing and design challenges through advanced technical capabilities:

  • High Accuracy Die Bonding
  • Epoxy Dispensing or Daubing
  • Flip Chip with Flux Dipping
  • Wirebonding - Ball, Wedge, Ribbon, Gold or Aluminum Wire
  • Plasma Cleaning
  • Die Encapsulation
  • Pull Test - Die and Ball Shear

The Newmarket Microelectronics lab is equipped with the following certifications:

  • ANSI S20.20
  • ISO 9001
  • ISO 14001, OHSAS 18001
  • ISO 13485
  • AS 9100
  • TL 9000
  • CGP / ITAR / EAR
  • C-TPAT / PIP
  • Nadcap - Electronics CCA, CHA
  • IPC standards compliance

Contact Us to Learn More

Learn more about our microelectronics lab services capabilities or request a quote:
